There are many options of carbon e bike frames designed for Bafang M510 motors in the market, but the option for Bafang M620 motor ebike carbon frame is still quite limited.

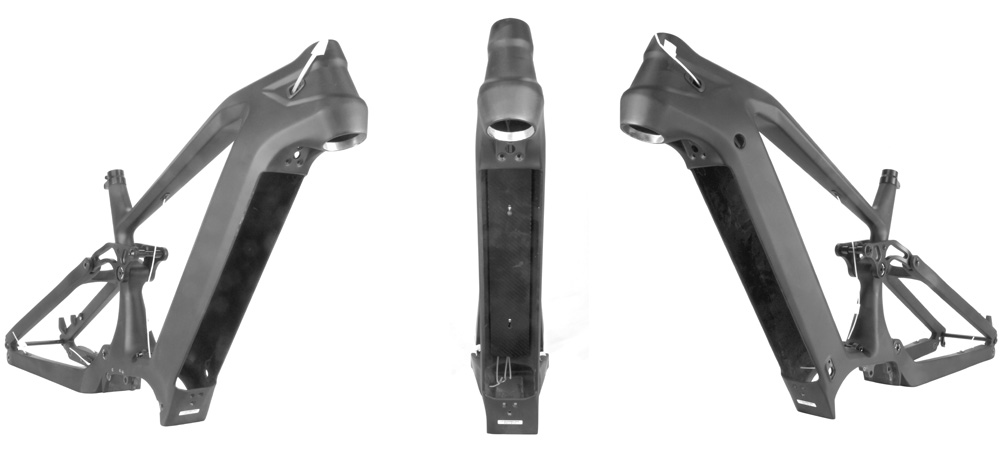

Fortunately, now ProX has such Bafang M620 carbon frame PXE28!
PXE28 is designed to fit Bafang M620 motor and Bafang BT F15(640Wh) or BT F25(820Wh) battery.
Bafang M620 is with max torque of 160Nm and with rated power 750W (or 1000W). Such great power enable e-bikes carry heavier load and conquer steeper mountains. In addition, it is designed with dual sensor, which enables riders to have great control of the bike and enjoy sensitive responsiveness all the time.
Bafang BT F15 or BT F25 batteries include large capacity and are able to take you further without range anxiety.
PXE28 carbon ebike frame is designed with Horst Link 4-bar virtual pivot suspension system. Rear shock placed in the best balance point to form an efficient suspension system which is nimble, not overloaded and extend the service life of bike.
What's more, the full suspension bike frame allows rider to get a better feel from rear shock which is to absorb the small and large hits with ease. It also provides relatively consistent and stable support through the entire adventure.
PXE28 full suspension e bike frame is currently available in two sizes (Medium/Large), and is compatible for both 27.5er 29erwheels. Its max tire clearance is 650B*3.0 and 29erx2.6". Large tire clearance provides you more options for tires, and you can also use mullet wheel for this bike.
Thesuitablerear shock size for this frame is 190*51mm(standardmount) andthe max rear travel is 150mm.Thanks to the installation position of rear shock on the frame, there issufficient roomto fit various of rear shocks, including those with piggy back design and coil design.
The rear shock is efficient to steer the bike with confidence to challenge rugged mountain terrain.
ProX Full Suspension Bafang M620 Ebike Carbon Frame PXE28 Video
